How customizations works

Customizing your ELB resources

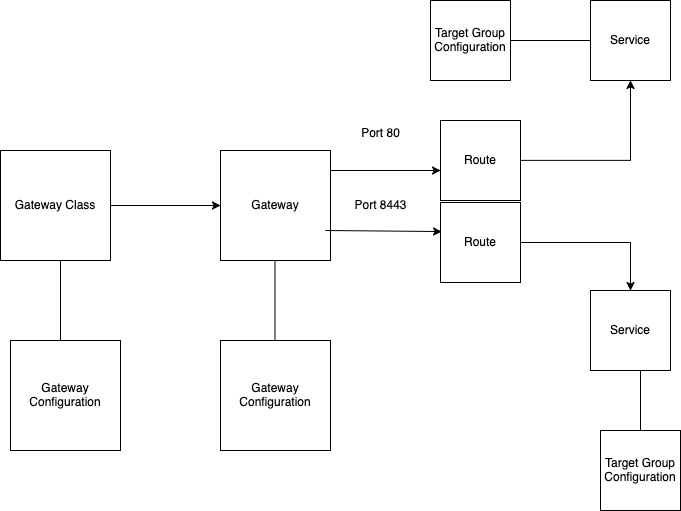

The AWS Load Balancer Controller (LBC) provides sensible defaults for provisioning and managing Elastic Load Balancing (ELB) resources in response to Kubernetes Gateway API objects. However, to accommodate diverse use cases and specific operational requirements, the LBC offers extensive, fine-grained customization capabilities through three Custom Resource Definitions (CRDs): LoadBalancerConfiguration, TargetGroupConfiguration, and ListenerRuleConfiguration.

Customizing the Gateway (Load Balancer) using LoadBalancerConfiguration CRD

The LoadBalancerConfiguration CRD allows for the detailed customization of the AWS Load Balancer (ALB or NLB) provisioned by the LBC for a given Gateway.

For a comprehensive list of configurable parameters, please refer to the LoadBalancerConfiguration CRD documentation.

Example: To configure your Gateway to provision an internet-facing Load Balancer, define the following LoadBalancerConfiguration resource:

apiVersion: gateway.k8s.aws/v1beta1
kind: LoadBalancerConfiguration
metadata:
  name: internet-facing-config
  namespace: example-ns
spec:
  scheme: internet-facing

This configuration can then be applied by attaching the LoadBalancerConfiguration resource to either a Gateway or a GatewayClass.

Attaching to a Gateway: When attached directly to a Gateway resource, the specified configuration applies specifically to the Load Balancer provisioned for that individual Gateway.

Note

Make sure that the LoadBalancerConfiguration is located in the same namespace as the Gateway.

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: test-gw
  namespace: example-ns
spec:
  gatewayClassName: nlb-gateway
  infrastructure:
    parametersRef:
      group: gateway.k8s.aws
      kind: LoadBalancerConfiguration
      name: internet-facing-config # Must be in the same namespace as the Gateway
  listeners:
  ...

Attaching to a GatewayClass: When attached to a GatewayClass resource, the configuration becomes a default for all Gateway resources that reference this GatewayClass.

apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: nlb-gateway
spec:
  controllerName: gateway.k8s.aws/alb
  parametersRef:
    group: gateway.k8s.aws
    kind: LoadBalancerConfiguration
    name: internet-facing-config
    namespace: example-ns

Conflict Resolution for LoadBalancerConfiguration

It is possible for a LoadBalancerConfiguration to be attached to both a Gateway and its associated GatewayClass. In such scenarios, when identical fields are specified in both configurations, the LBC employs a merging algorithm to resolve conflicts. The precedence of values is determined by the mergingMode field, which is exclusively read from the GatewayClass's LoadBalancerConfiguration. If mergingMode is not explicitly set, the GatewayClass configuration implicitly takes higher precedence. For more info on mergingMode, refer to the merging mode documentation.

The following fields exhibit specific merge behaviors:

• tags: The tag maps from both configurations are combined. In the event of duplicate tag keys, the value from the higher-priority configuration (as determined by mergingMode) will be utilized.
• loadBalancerAttributes: The attribute lists are combined. For duplicate attribute keys, the value from the higher-priority configuration will prevail.
• mergeListenerConfig: Listener lists are combined. For duplicate ProtocolPort keys, the listener configuration from the higher-priority source will be selected.

---

Customizing Services (Target Groups) using TargetGroupConfiguration CRD

The TargetGroupConfiguration CRD enables granular customization of the AWS Target Groups created for Kubernetes Services.

For a comprehensive overview of configurable parameters, please refer to the TargetGroupConfiguration CRD documentation.

Example: Default Target Group Configuration for a Service

To configure the target groups for a specific service (e.g., my-service) to use IP mode and custom health checks across all routes referencing it, employ the following configuration:

apiVersion: gateway.k8s.aws/v1beta1
kind: TargetGroupConfiguration
metadata:
  name: custom-tg-config
  namespace: example-namespace
spec:
  targetReference:
    name: my-service
  defaultConfiguration:
    targetType: ip
    healthCheckConfig:
      healthCheckPath: /health
      healthCheckInterval: 30
      healthyThresholdCount: 3

Here, my-service is referenced within the targetReference of custom-tg-config. Any target group subsequently created for my-service via any route will inherit these default settings. Note that only one TargetGroupConfiguration CRD can be declared per service, and it must reside within the same namespace as the service it configures.

Example: Route-Specific Target Group Configuration

Alternatively, specific target group settings can be applied based on the individual routes referencing a service. This allows for tailored configurations for different traffic flows.

apiVersion: gateway.k8s.aws/v1beta1
kind: TargetGroupConfiguration
metadata:
  name: route-specific-tg-config
  namespace: example-ns
spec:
  targetReference:
    name: my-service
  defaultConfiguration:
    targetType: ip
  routeConfigurations:
    - routeIdentifier:
        kind: TCPRoute
        namespace: example-ns
        name: api-route
      targetGroupProps:
        healthCheckConfig:
          healthCheckPath: /api/health
          healthCheckProtocol: HTTP
    - routeIdentifier:
        kind: TCPRoute
        namespace: example-ns-2
        name: admin-route
      targetGroupProps:
        healthCheckConfig:
          healthCheckPath: /admin/health
          healthCheckInterval: 10

How Default and Route-Specific Configurations Merge

When both defaultConfiguration and routeConfigurations within a TargetGroupConfiguration specify the same field, route-specific configurations take precedence. The controller identifies the most relevant route specification from the list of routeConfigurations and merges its targetGroupProps with the defaultConfiguration's settings. For detailed information on the route matching logic employed, refer to the Route Matching section.

The following fields exhibit specific merge behaviors:

• tags: The two tag maps are combined. Any duplicate tag keys will result in the value from the higher-priority (route-specific) configuration being used.
• targetGroupAttributes: The two attribute lists are combined. Any duplicate attribute keys will result in the attribute value from the higher-priority (route-specific) configuration being applied.

Customizing L7 Routing Rules

The ListenerRuleConfiguration CRD allows representation of features present in AWS ALB, that are not represented in the standard Gateway API spec.

An exhaustive list is:

• Cognito Authentication
• OIDC Authentication
• Fixed Response
• Source IP Conditions

For a comprehensive overview of the CRD, please refer to the ListenerRuleConfiguration CRD documentation.

Example: Adding source IP routing conditions

This example adds upon the example found here. It adds a routing rule that only allows requests originating from the range 10.0.0.0/5 to be routed to the backend.

# source-ip-condition.yaml
apiVersion: gateway.k8s.aws/v1beta1
kind: ListenerRuleConfiguration
metadata:
  name: custom-rule-config-source-ip
  namespace: example-ns
spec:
  conditions:
    - field: source-ip
      sourceIPConfig:
        values:
          - 10.0.0.0/5
---
# updated-http-route.yaml
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
  name: my-http-app-route
  namespace: example-ns
spec:
  parentRefs:
  - group: gateway.networking.k8s.io
    kind: Gateway
    name: my-alb-gateway
    sectionName: http
  - group: gateway.networking.k8s.io
    kind: Gateway
    name: my-alb-gateway
    sectionName: https
  rules:
  - backendRefs:
    - name: <your service>
      port: <your service port>
    filters:
      - type: ExtensionRef
        extensionRef:
          group: "gateway.k8s.aws"
          kind: "ListenerRuleConfiguration"
          name: "custom-rule-config-source-ip"

To add granular rules, specify the index match:

# source-ip-condition.yaml
apiVersion: gateway.k8s.aws/v1beta1
kind: ListenerRuleConfiguration
metadata:
  name: custom-rule-config-source-ip
  namespace: example-ns
spec:
  conditions:
    - field: source-ip
      matchIndexes: [0,1]
      sourceIPConfig:
        values:
          - 10.0.0.0/5
---
# updated-http-route.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: http-app-source-ip
  namespace: example-ns
spec:
  parentRefs:
    - name: my-alb-gateway
      port: 90
  rules:
    - backendRefs:
        - name: echoserver
          port: 80
      filters:
        - type: ExtensionRef
          extensionRef:
            group: "gateway.k8s.aws"
            kind: "ListenerRuleConfiguration"
            name: "custom-rule-config-source-ip"
      matches:
        - path: # Path Pattern
            type: Exact
            value: /pathExactMatch
          queryParams: # Query String
            - name: "user"
              value: "john"
          method: GET # HTTP Request Method
        - path: # Regex path match
            type: RegularExpression
            value: "/firstRule/some?/users"
    - backendRefs:
        - name: echoserver
          port: 80
      filters:
        - type: ExtensionRef
          extensionRef:
            group: "gateway.k8s.aws"
            kind: "ListenerRuleConfiguration"
            name: "custom-rule-config-source-ip-2"
      matches:
        - path: # Path Pattern
            type: Exact
            value: /secondRulePath
          method: POST # HTTP Request Method
        - path: # Regex path match
            type: RegularExpression
            value: "/secondRule/some?/users"
        - path:
            type: "PathPrefix"
            value: "/secondRule"
