In-Cluster Migration Console

The migration console is a local web UI bundled into the lbc-migrate binary. It compares the ingress controller's dry-run plan against the gateway controller's dry-run plan side by side, field by field, so you can confirm the generated Gateway manifests will create the same AWS resources as the current Ingress before switching traffic.

A dry-run plan is a JSON snapshot of the AWS resource stack a controller would build (LoadBalancer, Listeners, ListenerRules, TargetGroups, TargetGroupBindings, SecurityGroups). The plan is written back to the source Kubernetes resource as an annotation — alb.ingress.kubernetes.io/dry-run-plan on the Ingress (when the IngressPlanAnnotation feature gate is on) and gateway.k8s.aws/dry-run-plan on the Gateway (when it carries the gateway.k8s.aws/dry-run: "true" annotation). The console reads both plans and diffs them — no AWS resources are created.

The console is read-only. It connects to your Kubernetes cluster using the current kubeconfig context (the same config used by kubectl). It reads Gateway and Ingress resources and their annotations. It never creates, updates, or deletes cluster or AWS resources.

What it supports

• Cluster-wide discovery of namespaces that hold dry-run Gateways, each paired with its source Ingress via the gateway.k8s.aws/migrated-from tag.
• Side-by-side comparison of the full built model stack — LoadBalancer, Listeners, ListenerRules, TargetGroups, TargetGroupBindings, SecurityGroups — produced by each controller.
• Side-by-side comparison with field-level diff and status filtering.
• Field-level diff with four statuses: same, changed, added, removed. Slice fields (e.g. SecurityGroup ingress rules) are compared as multisets.
• Known-change filtering that hides expected migration artifacts so real drift between the two plans stands out. A known change is a diff the console can attribute to a known structural difference between the two controllers — for example, the migrated-from tag the migration tool stamps on every generated resource, controller-generated resource names, health-check default drift, and targetGroupARN.$ref pointer churn. See How diffs are classified for the full list.
• Resource correlation across controllers: TargetGroup and TargetGroupBinding are keyed by serviceRef.name:port so the same backing service shows as one correlated row instead of a removed+added pair, even though the two controllers generate different raw stack IDs.
• IngressGroup resolution including cross-namespace groups, using the migrated-from tag plus a cluster-wide list of Ingresses to locate the single group member that carries the plan annotation.
• Export — download a self-contained HTML report or raw JSON to share the diff with team members who do not have cluster access.

What it does not do:

• It does not call AWS or check live resource state. It only diffs the two dry-run plans.
• It does not have a namespace-scoped mode. Cross-namespace ingress groups require cluster-wide list permission on Ingresses and Gateways.
• It does not modify any Kubernetes or AWS resource.

The controllers do write annotations

The console itself is read-only, but the controllers it reads from are not. While the IngressPlanAnnotation feature gate is enabled, the ingress controller writes an alb.ingress.kubernetes.io/dry-run-plan annotation on Ingress; the gateway controller writes a gateway.k8s.aws/dry-run-plan annotation on each Gateway that carries gateway.k8s.aws/dry-run: "true". These annotations are the data the console reads. Disable the feature gate and remove the dry-run Gateways once migration is complete to stop further annotation writes.

How to launch

The console is part of the dry-run verification workflow (Step 2 of the Migration Guide). In summary:

1. Enable IngressPlanAnnotation=true feature gate on the controller
2. Generate Gateway resource manifests with lbc-migrate (dry-run is on by default)
3. Apply the manifests — both controllers write their plans as annotations
4. Launch the console to compare them

lbc-migrate --console
# or bind to a different port
lbc-migrate --console --port 9000

The console binds to http://localhost:8080 by default and operates cluster-wide using your current kubeconfig context. Open that URL in a browser.

See the Migration Guide for the full step-by-step instructions including prerequisites and feature gate setup.

Using the console

Landing page

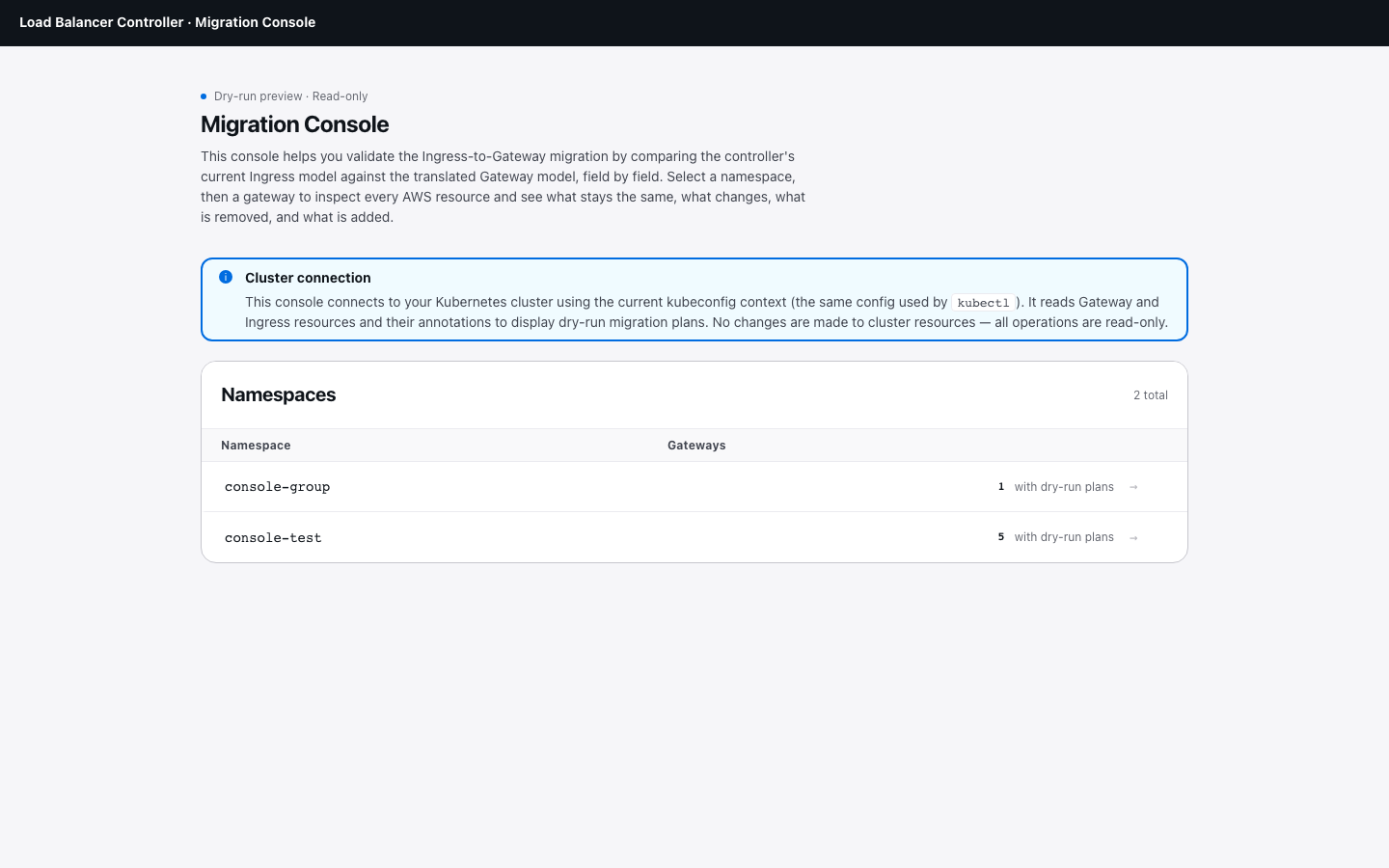

The landing page lists every namespace that has at least one Gateway carrying a gateway.k8s.aws/dry-run-plan annotation, with a count of those Gateways. Namespaces without dry-run plans do not appear.

An info alert at the top reminds you that the console reads from the cluster using your current kubeconfig context and that all operations are read-only.

Click a namespace to see its gateways.

Gateway list

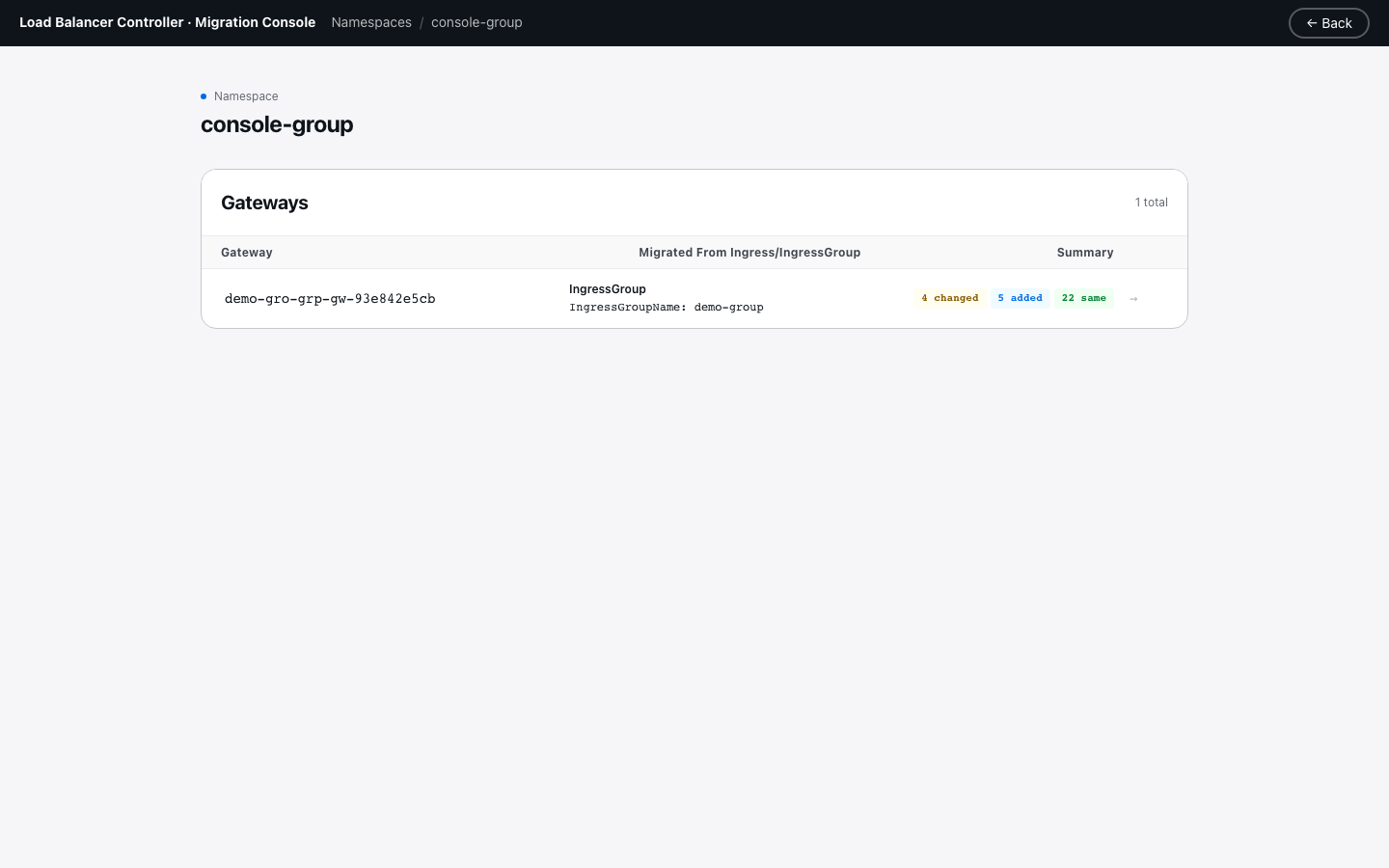

After selecting a namespace, the console lists all Gateways with dry-run plans in that namespace. Each gateway row shows a summary of its diff status (how many fields are same, changed, removed, or added) and maps to its source Ingress or IngressGroup.

Click a gateway to enter the comparison view.

Comparison view

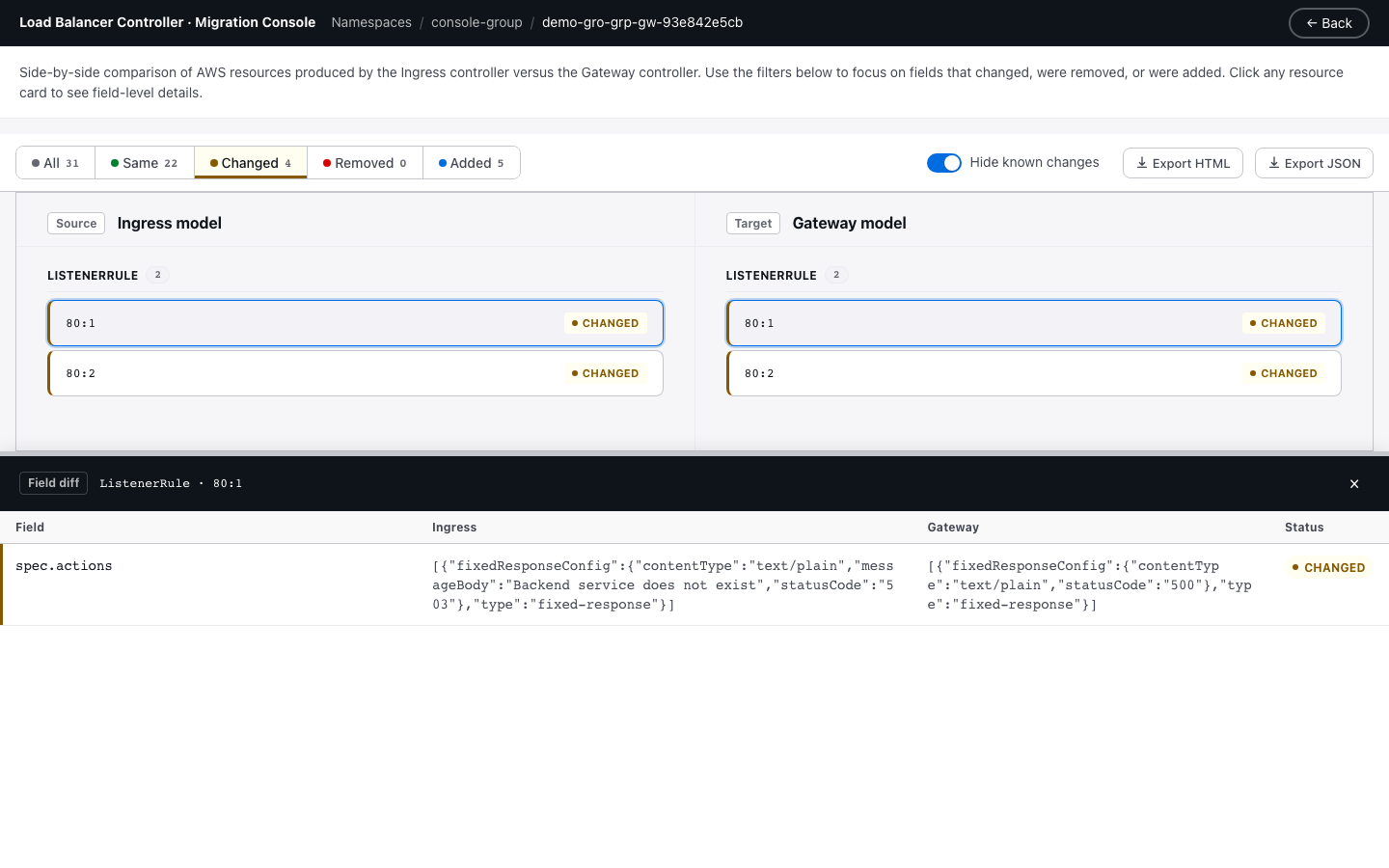

The comparison view shows a side-by-side diff for the selected gateway. It is organized into these regions:

• Segmented filter control — buttons for All, Same, Changed, Removed, Added with counts. Click a button to scope the view to only resources in that status. Clicking an active filter resets back to All. Hover over any filter for a description of what it shows.
• Hide known changes toggle — filters out diffs classified as known migration artifacts (see How diffs are classified below). On by default.
• Export buttons — download the diff as a self-contained HTML report or raw JSON. A confirmation dialog warns that the exported file can be viewed without cluster access.
• Ingress model (left) and Gateway model (right) — each resource in the stack appears as a card. When a status filter is active, each card shows a status tag next to the resource ID for accessibility.

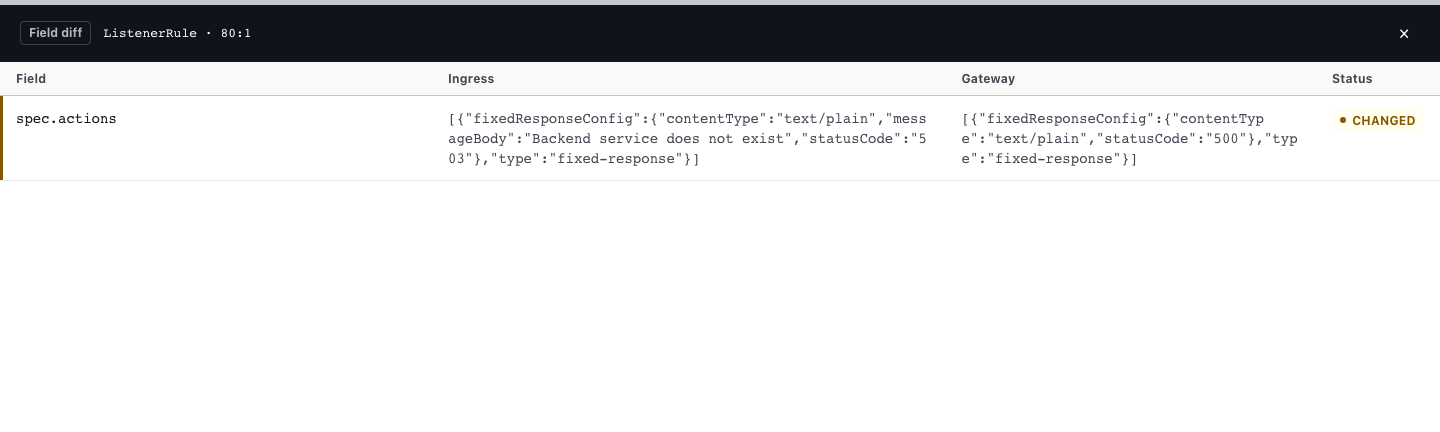

Click a card to open the detail drawer. The drawer lists every field with its ingress-side value, gateway-side value, and status. It carries its own "Hide known changes" checkbox for per-resource filtering. When a known cause is identified, it appears in the "Known Cause" column.

Breadcrumb navigation

The top bar shows breadcrumbs for your current location: Namespaces / <namespace> / <gateway>. Click any breadcrumb to navigate back to that level. The "← Back" button goes up one level.

How resources are correlated

Resources are matched across the two plans by a correlation key:

• For most resource types the raw stack ID is stable, so the key is the ID itself.
• For TargetGroup and TargetGroupBinding the two controllers generate different raw IDs even when pointing at the same backing service. The console keys these on the TGB's serviceRef.name:port, producing a single correlated row with field-level diffs instead of a removed+added pair.

How diffs are classified

Every field diff is assigned one of four statuses:

• same — both sides produce the same value. Slice fields are compared as multisets ([80, 81] equals [81, 80]) because ALB treats things like SecurityGroup ingress rules as unordered.
• changed — both sides have the field, values differ.
• added — only the gateway side has the field.
• removed — only the ingress side has the field.

The Hide known changes toggle filters out the following known-artifact cases:

• migrated-from tag added to any resource — the migration tool stamps spec.tags.gateway.k8s.aws/migrated-from on every generated resource, so an added entry for this tag is expected on the gateway side.
• Controller-generated name change on ALB-family resources — spec.name on LoadBalancer and TargetGroup, spec.groupName on SecurityGroup, and spec.template.metadata.name on TargetGroupBinding. Marked expected only when both sides match the controller-generated format (k8s-<...>-<10 hex>, two or three dash sections before the suffix). A custom name set via annotation on either side still surfaces as a real changed diff.
• Health-check default drift on TargetGroup — spec.healthCheckConfig.healthyThresholdCount, spec.healthCheckConfig.unhealthyThresholdCount, and spec.healthCheckConfig.matcher.httpCode. The ingress controller defaults to 2 / 2 / 200; the gateway controller defaults to 3 / 3 / 200–399. To preserve the Ingress-side health-check behavior on the gateway side (e.g., for services with tight health-check requirements), set explicit values in TargetGroupConfiguration.spec.healthCheck.* on the generated TargetGroupConfiguration. See TargetGroupConfiguration for the full field reference.
• spec.actions array change on ListenerRule — when the entire spec.actions field differs only because of different targetGroupARN.$ref strings (naming artifact) and an added weight field (gateway controller always emits weight: 1 on every forward target group; the ingress controller omits it), the diff is classified as known. If any other part of the actions structure differs (action type, status code, etc.), it surfaces as a real change.
• targetGroupARN.$ref string change — on ListenerRule (forwardConfig.targetGroups[...].targetGroupARN.$ref) and on TargetGroupBinding (spec.template.spec.targetGroupARN.$ref). These $ref values are JSON pointers into another resource's raw stack ID; the stack IDs differ per controller even when they point at the same backing service, so the string always differs. Real target-group differences surface on the correlated TargetGroup row.

Everything not matching these rules is shown as-is, so genuine drifts between actual and expected changes are never silently hidden.

Exporting results

Click Export HTML or Export JSON in the toolbar to share the diff:

• HTML — a self-contained report with embedded styles and a full table of all diff entries. Open in any browser with no dependencies.
• JSON — the raw diff payload including namespace, gateway, timestamp, and all entries. Useful for storing in a ticket or processing programmatically.

Both exports trigger a confirmation dialog warning that the file contains full resource configurations viewable without cluster access.

Resolving the ingress source for a Gateway

Each Gateway is paired with the Ingress that holds its dry-run plan. The console derives the pairing from the gateway.k8s.aws/migrated-from tag on the LoadBalancer resource of every generated plan:

• ingress/<namespace>/<name> — standalone Ingress, direct pointer.
• ingress-group/<group-name> — the console lists Ingresses cluster-wide, filters by alb.ingress.kubernetes.io/group.name == <group-name>, and returns whichever member currently carries a non-empty dry-run-plan annotation.

On a healthy group, exactly one member holds the plan. If the console finds zero or more than one, it surfaces an error on the Gateway card.

RBAC

The console needs these permissions in the context it runs under:

• Cluster-wide list on gateways.gateway.networking.k8s.io — for the landing page and per-namespace gateway lists.
• Cluster-wide list on ingresses.networking.k8s.io — for resolving group plan holders, since ingress groups can span namespaces.
• get on ingresses.networking.k8s.io in any namespace that appears on the landing page — to read the plan annotation once the holder is resolved.

Troubleshooting

"could not determine ingress plan holder: no migrated-from tag found on LoadBalancer in gateway model" — the Gateway's dry-run plan lacks a migrated-from tag, which means it was not generated by lbc-migrate. Confirm you applied the output of lbc-migrate and not a hand-authored Gateway.

"no ingress in group <name> carries a dry-run-plan annotation" — the ingress controller has not yet written the plan annotation for any member of that group. Confirm the IngressPlanAnnotation feature gate is enabled and the ingress controller has reconciled the group at least once.

"multiple ingresses in group <name> carry a dry-run-plan annotation" — usually a stale annotation left behind after group membership changed. Manually clear the annotation from all but one member and refresh the console.

Limitations

• The console does not verify AWS resource state. It only compares the two dry-run plans.
• Cross-namespace explicit groups require cluster-wide list permission on Ingresses (see RBAC). There is no namespace-scoped mode.
